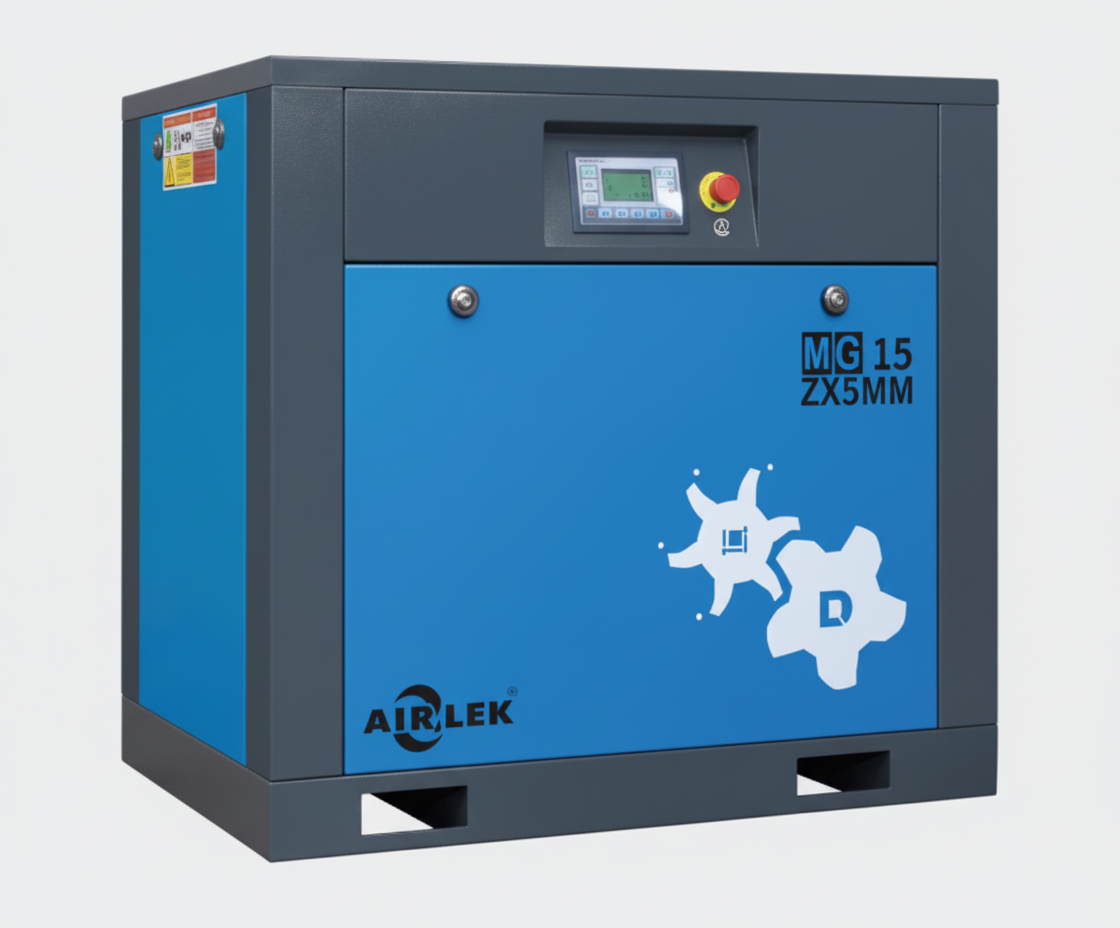

Fixed Speed Screw Air Compressor

Share:

Fixed Speed Screw Air Compressor

Category:
Brand:
Compare
Inquire now
lubricator
auto greaser
auto greaser malaysia
lubricator malaysia
automatic grease dispenser
Model HD-7.5 HD-11 HD-15 HD-18.5 HD-22 HD-30 HD-37 HD-45 HD-55 HD-75
F.A.D / Max Pressure (m3/min / MPa) 1.1/0.8 1.8/0.8 2.2/0.8 3.3/0.8 3.5/0.8 5.0/0.8 6.3/0.8 7.3/0.8 9.5/0.8 12.5/0.8
Ambient Temperature -5 ~ +45 °C
Cooling Mode Air-Cooling
Discharge Temperature ≤ Environment Temp + 15°C
Lubricant Oil (L) 8 10 12 14 16 18 20 22 25 30
Noise dB(A) 62 ± 2 65 ± 2 68 ± 2 70 ± 2 72 ± 2
Driven Mode Direct Drive
Voltage 380V/50Hz/3Ph
Power (kW) 7.5 11 15 18.5 22 30 37 45 55 75
Starting Mode Y-Δ (Star-Delta) Start
Dimension (L*W*H mm) 900*670*880 1000*700*1000 1000*700*1000 1200*800*1100 1200*800*1100 1300*900*1200 1300*900*1200 1500*1000*1300 1600*1100*1400 1800*1200*1500
Net Weight (kg) 180 220 240 320 350 450 500 650 750 900
Outlet Pipe Diameter (inch) Rp3/4 Rp3/4 Rp3/4 Rp1 Rp1 Rp1 Rp1, 1/4 Rp1, 1/2 Rp1, 1/2 Rp2
